JadeMaster 40S - Precision CNC Engraving System for Jade & Hard Materials

Подробная информация о продукции

Условия оплаты и доставки

Лучшая цена
Выделить:
Рабочая зона (x/y/z):
410 x 410 x 140 мм
Общие измерения:
900 x 730 x 1580 мм
Веретеное мотор:
1,5 кВт, 24000 об / мин (воздушное охлаждение)
Точность позиционирования:
± 0,01 мм
Точность ведущего винта:
± 0,02 мм
Максимальная скорость движения:
6000 мм/мин
Система привода:
шаговый мотор
Система управления:
3-осевой контроллер DSP Weihong
Диапазон диаметра инструментов:
Ø3 - Ø6 мм
Машинный чистый вес:
~ 270 кг
Общая мощность:
2,4 KW
Рабочее место:
Зажимные приспособления / клей
Рабочая зона (x/y/z):
410 x 410 x 140 мм
Общие измерения:
900 x 730 x 1580 мм
Веретеное мотор:
1,5 кВт, 24000 об / мин (воздушное охлаждение)
Точность позиционирования:
± 0,01 мм
Точность ведущего винта:
± 0,02 мм
Максимальная скорость движения:
6000 мм/мин
Система привода:
шаговый мотор
Система управления:
3-осевой контроллер DSP Weihong
Диапазон диаметра инструментов:
Ø3 - Ø6 мм
Машинный чистый вес:
~ 270 кг
Общая мощность:
2,4 KW
Рабочее место:
Зажимные приспособления / клей

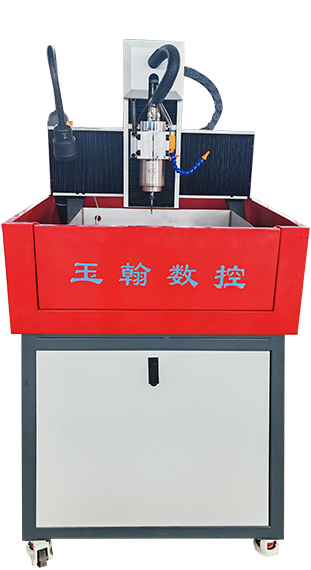

JadeMaster 40S - Precision CNC Engraving System for Jade & Hard Materials

Introduction

The JadeMaster 40S is a professional-grade CNC engraving machine meticulously designed for crafting jade, precious stones, and other demanding materials. It features a high-torque 1.5KW 24,000 RPM air-cooled spindle and achieves remarkable positioning accuracy of ±0.01mm, enabling the creation of intricate designs with flawless surface quality. Housed in a rigid, vibration-dampening structure, the machine offers a substantial work area of 410x410x140mm while maintaining a compact footprint. Integrated with a user-friendly Weihong 3-axis control system and powerful stepper drives, the JadeMaster 40S is the ultimate tool for jewelers, artists, and precision manufacturers seeking reliability and exceptional results.



Functional Characteristic

JadeMaster 40S: Where Precision Meets Power in Stone Carving

The JadeMaster 40S represents the pinnacle of accessible yet professional CNC technology for the ancient art of jade carving. Engineered for stability, accuracy, and ease of use, it transforms raw stone into exquisite works of art and precision components. The semi-enclosed chassis protects the operator and contains debris, making it suitable for a wide range of workshop environments.

Core Features & Advantages:

  • Uncompromising Precision: Achieve flawless detail with true ±0.01mm positioning accuracy and ±0.02mm lead screw precision, ensured by high-grade linear guides and robust construction.

  • High-Speed Spindle Performance: The powerful 1.5KW (24000 RPM) air-cooled spindle maintains constant torque at low speeds for smooth milling and effortlessly handles high-speed engraving, suitable for jade, composites, metals, and engineering plastics.

  • Rigid & Stable Platform: With a net weight of approximately 270kg, the heavy-duty cast and machined frame effectively absorbs vibrations, which is critical for achieving clean breaks and fine finishes on hard, brittle materials.

  • Intuitive Control System: The reliable Weihong 3-axis DSP control system is renowned for its user-friendly interface, supporting powerful yet straightforward operation for both simple and complex 3D patterns. It allows for adjustable feed rates from 0 to 6000mm/min.

  • Versatile Workholding: The machine supports multiple securing methods, including dedicated clamps for substitute wood bases and the use of adhesives, providing flexibility for various workpiece shapes and sizes.

  • Comprehensive Safety: The semi-enclosed design offers superior protection against flying chips and accidental contact, integrating safety into its core operation
